Large gear processing and overview



The origin of gears can be traced back to ancient civilization. In ancient times, this technology was first used on waterwheels and windmills. They were all made of wood, with only a few gears, few gears, and very simple structures. For example, gears were widely used in hydraulic machinery systems in ancient Greece and Rome. In the Middle Ages, gear technology developed further, especially in mills, clocks, and metallurgical industries.



At the end of the 18th century, the Industrial Revolution came. Due to the need for large-scale production and the increasing demand for transmission, inventions led by steam engines appeared, which promoted the development of mechanical transmission. During this period, gears were mainly cast in steel, gradually from manual grinding to mechanical processing.



In the 20th century, with the emergence of internal combustion engines and electric motors and the popularization of large equipment, the development of large gears was used in heavy machinery, ship power and other fields. Large gears have undertaken more complex tasks. With the continuous mining of new durable materials, the production of gears is no longer limited to steel. Gradually replaced by high-strength materials such as alloy steel. The bearing capacity and wear resistance of gears have been greatly improved.



In modern times, the invention of computers and automated programming have greatly improved the design and processing accuracy of large gears. CNC has brought the production and quality of large gears to an unprecedented level!

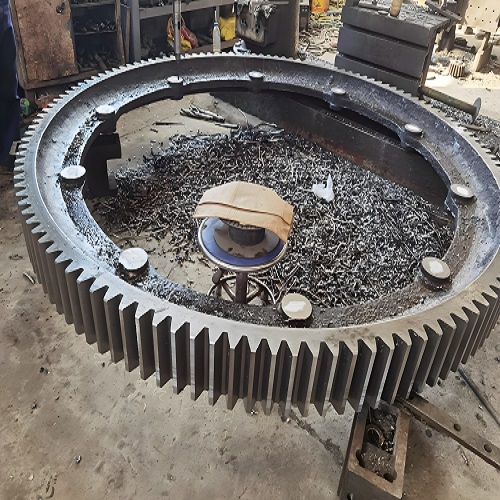

In industry terms, large gears are measured on the surface of large gears. According to the size of large gears, especially the diameter of large gears, large gears with a diameter of more than one meter are called large gears. They are made of high-strength metal and produced by professional manufacturers. Large gears have the advantages of stable transmission, high load and long life.





Large gears usually have a larger diameter and number of teeth, and their teeth are relatively thick and can withstand larger torques. Small gears are relatively small, with fewer diameters and teeth, and smaller teeth.



The main function of large gears and small gears is to achieve transmission through meshing. The speed of the large gear is relatively low, but the torque is large. It can transmit power to the small gear, thereby driving the small gear to rotate at high speed. The small gear is the opposite, with a higher speed but smaller torque. It can accelerate the power transmitted by the large gear and transmit it to other components.



Common toothing methods include spur gearing, helical gearing, and herringbone gearing. Spur gears and pinions have simple structures and are easy to manufacture, but they are noisy during transmission and are suitable for low-speed and light-load applications. Helical gears and pinions have smooth transmission and low noise, and are suitable for high-speed and heavy-load applications. Herringbone gears and pinions can withstand greater axial forces and are used in high-power transmission systems.





Generally speaking, steel is one of the most commonly used materials in the manufacture of large gears. Among them, alloy steel is favored for its excellent comprehensive properties. For example, chromium-molybdenum alloy steel has high strength, good toughness and fatigue resistance, can withstand high loads and frequent start-stop operations, and is suitable for manufacturing high-speed and heavy-loaded large gears. After carburizing, carburized steel has high surface hardness and good wear resistance, while the core still maintains good toughness, which is suitable for manufacturing large gears that withstand impact loads. Carbon steels such as 45 steel are also commonly used in the manufacture of some large gears with relatively low performance requirements. They have low cost and good processing performance.



In some specific application scenarios, engineering plastics have also begun to be used in the manufacture of large gears. For example, polyoxymethylene (POM) has excellent mechanical properties, wear resistance and dimensional stability, low friction coefficient, good self-lubrication, and is suitable for the manufacture of some large gears with high precision requirements and relatively clean working environment. Engineering plastics such as nylon also have certain strength and wear resistance and can be used in some low-speed and light-load occasions.



Some new materials such as titanium alloys and high-temperature alloys are also gradually being used in the manufacture of large gears. Titanium alloys have the advantages of high strength, low density, and corrosion resistance, and are used in large gears working in high temperature and corrosive environments; high-temperature alloys can maintain good performance under high temperature conditions and are used to manufacture large gears in aerospace and other fields.





It mainly includes steps such as forging, rough machining, heat treatment and finishing.



The material is forged and cast at a suitable temperature to make it roughly the shape of a gear, and then processed by large machine tools through milling, planing and other processing methods. Heat treatment improves the performance of the material, and then it is processed by high-precision machine tools and molds through grinding, honing and other methods. The tooth profile accuracy reaches a very high level and the surface roughness reaches a very small value.







Large gears are widely used in various large mechanical equipment. For example, in mining equipment, large gears are responsible for transmitting huge power to drive crushers, hoists and other equipment to operate. The crusher relies on the high-speed rotation of the large gear to crush the hard ore into a suitable particle size, providing a basis for subsequent mineral processing and other processes. The hoist lifts heavy objects such as ore from underground to the ground through the transmission of the large gear to ensure continuous production. In steel mills, large gears are used to drive rolling mills, so that steel can be squeezed through rollers at high temperatures to achieve processing of different specifications and shapes. The stable operation of large gears directly affects the quality and production efficiency of steel.





In the automobile transmission system, large gears cooperate with small gears to achieve the speed change function through different gear ratios. The large gear has a large diameter and can withstand large torque. It provides stable power output under low speed and high torque conditions. For example, when the car starts or climbs, the large gear plays a key role.





For example, agricultural equipment such as combine harvesters and tractors are equipped with large gears. When the combine harvester harvests crops, the large gear drives the cutter, threshing device and other components to work, realizing efficient harvesting and threshing operations.





Large gears also play an important role in cranes, excavators, etc. The large gear of the crane is responsible for lifting heavy objects. The lifting speed and strength of the heavy objects are controlled through precise transmission ratios to ensure the safety and efficiency of construction.



With the characteristics of being able to transmit large torque and withstand high loads, it provides power support for the operation of various mechanical equipment and is an indispensable and important component in modern industry and production activities.
