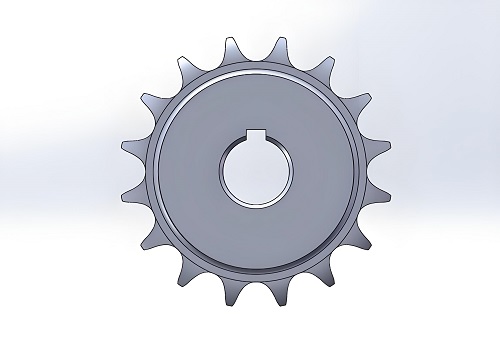

What is a sprocket wheel?
Sprocket is actually a kind of wheel with embedded fastening chain teeth, it is also a kind of mechanical gear. It is mainly used for transmission, made of metal, used to mesh with the chain or belt, two parts need to mesh with the synchronized movement, so as to achieve the effect of running.
From the mechanical structure point of view, the sprocket usually consists of gear teeth, hub and spokes and other parts. The teeth are the key part of the sprocket wheel, which are arranged in the periphery of the hub in an arc shape to transmit power and movement through meshing with the chain. The hub is the center part of the sprocket wheel and is used to connect the drive shaft or other transmission parts, providing a base for support and rotation. The spokes connect the hub to the teeth, providing reinforcement and support so that the sprocket can withstand greater torque and load.
Working Principle of Sprocket Wheel
Based on the meshing between the chain and the sprocket. When the sprocket wheel rotates, the teeth of the wheel and the links on the chain bite each other, and the power is transmitted to the chain through friction, which in turn drives the movement of other parts connected with it. Since the shape and pitch of the teeth of the sprocket are specially designed, different specifications of sprockets can be used with different types and pitches of chains to meet different transmission requirements.
Process Flow of Sprocket Wheels
Blank Manufacturing
Manufacturing by forging or casting, drawing requirements, cutting the raw material into the required size, controlling the process parameters of forging or casting, so that it meets the quality requirements.
Machining preparation
Rough machining method, using turning, milling and other methods to process the outline of the sprocket blank.
Heat Treatment
Heat treatment is an important process in the processing of sprocket wheel, utilizing quenching and tempering to improve the hardness and abrasion resistance of sprocket wheel, so as to make it have good comprehensive mechanical properties.
Finishing
Tooth grinding processing: This kind is for the sprocket wheel which requires very high precision, and it is carried out by internal grinding machine or external grinding machine.
Honing processing: on the basis of tooth grinding processing, honing processing is carried out to further improve the tooth precision and surface quality of the sprocket.
Finally, inspection and assembly are carried out in accordance with relevant standards and norms to ensure that the quality of the sprocket wheel meets the basic requirements. After meeting the requirements, the sprocket wheel is assembled, and the transmission system is composed of shaft, chain and other components to see whether it can operate normally.
Key components of sprocket wheel

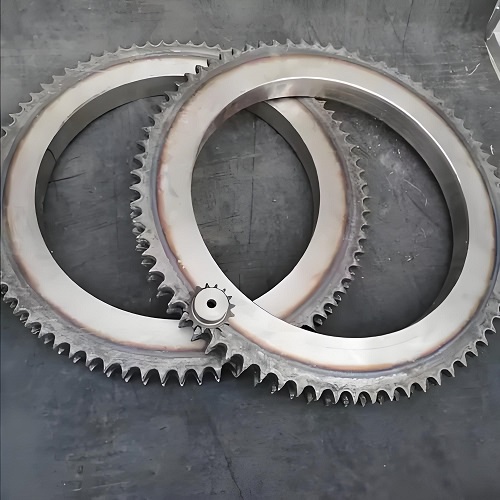

Sprocket teeth: the core part of the sprocket wheel, directly engaging with the chain to transmit power and motion. Sprocket teeth are usually made of high-strength alloy steel, which can withstand large loads and friction.
Sprocket shaft: the part that supports the sprocket and enables it to rotate, the quality and precision of which directly affect the stability and life of the sprocket.
Sprocket hub: the part connecting sprocket teeth and sprocket shaft, it plays the role of transmitting torque and fixing sprocket.
Sprocket groove: fixing the chain and preventing the chain from falling off. Common connection parts of the sprocket wheel include coupling, bolt connection, etc. Choose the suitable connection method according to different transmission systems and working requirements.
Types and Applications of Sprockets
Toothed sprocket: one of the most common types of sprocket, its tooth shape is usually the standard involute tooth shape. This kind of sprocket has the advantages of smooth transmission, low noise, strong bearing capacity, etc. It is suitable for high-speed transmission and high-power transmission.
Toothed sprocket is widely used in engine and other parts, the high precision and reliability of the toothed sprocket can ensure the stability of the engine's power output and improve fuel efficiency.
Roller sprocket: This kind of sprocket is characterized by the installation of rollers on the tooth surface of the sprocket, which can reduce the friction between the sprocket and the chain, improve the transmission efficiency and reduce the noise. It is often involved in high speed and heavy load transmission occasions.
This product is widely used in the transmission system of belt conveyor, chain conveyor and other equipment.
Toothed Plate Sprocket: Toothed plate sprocket is a sprocket which is used in conjunction with toothed chain, and its tooth shape matches with the link of toothed chain. The advantages are smooth transmission, low noise and compact chain links. It is often used in bicycle transmission system, and toothed chain plate sprocket is also widely used in some small mechanical equipments, such as printers, copiers and so on. It can meet the basic requirements.
Shaped sprocket: In addition to the three types of sprockets mentioned above, there is also this kind, such as fan-shaped sprocket, taper sprocket, etc. Shaped sprocket is usually used in mechanical equipment that requires special transmission ratio or transmission efficiency. This kind of generally need special customization, usually used in cranes.
The above is the introduction of the sprocket, if you need to customize, you can click us to get a quote.
